Waste Drying Machine

Waste Drying Machine is designed to reduce moisture in various waste materials, including organic waste, industrial sludge, agricultural residues, and SRF/RDF, to optimal levels for further processing or energy recovery. MSWsorting offers two advanced drying solutions: the Rotary Drum Dryer and the Belt Type Dryer. Both utilize efficient, often low-temperature drying principles and ensure compliant exhaust gas control.

1. Rotary Drum Dryer for Waste Drying

Rotary Drum Dryer is a robust, continuous-processing dryer that uses a rotating cylindrical drum to tumble and dry a wide variety of waste materials. It is engineered for high-volume operations, efficiently handling large quantities with consistent moisture reduction. The system can operate at various temperature ranges to suit material characteristics while minimizing emissions.

How It Works: Principle of Operation

1. Feeding & Tumbling: Wet waste material enters the drum through a controlled feeder. As the drum rotates, internal flights lift and cascade the material, exposing it uniformly to the heat stream.

2. Heat Transfer: Hot air or thermal medium flows through the drum. The tumbling action maximizes surface area for effective convective and conductive heat transfer, driving off moisture.

3. Moisture Evaporation & Separation: Evaporated moisture is carried by the gas stream into a downstream filtration unit. The dried product exits at the drum's end, while exhaust gases are treated to meet environmental standards.

4. Control Systems: Advanced sensors monitor temperature, airflow, and moisture levels, allowing real-time adjustments for optimal drying efficiency.

Key Advantages & Features:

• Versatile Temperature Control: Can be configured for low, medium, or high-temperature drying based on material requirements.

• Multi-Stage Drying Technology: Staged drying process optimizes efficiency and minimizes risks for sensitive materials.

• Anti-Sticking Drum Coating: Specialized coating prevents material adhesion and buildup on drum interior surfaces.

• Patented Lifting Flight Design: Advanced flight configuration enhances material dispersion, maximizes hot air contact, and improves thermal efficiency.

Applications

• Municipal Solid Waste (MSW) Processing: Drying of organic fraction, SRF/RDF, or sewage sludge.

• Biomass & Agricultural Waste: Drying wood chips, straw, bagasse, and other agro-residues for fuel or composting.

• Industrial Sludge: Volume and weight reduction of sludge from various manufacturing processes.

• Waste-to-Energy Pre-treatment: Enhancing calorific value of waste-derived fuels.

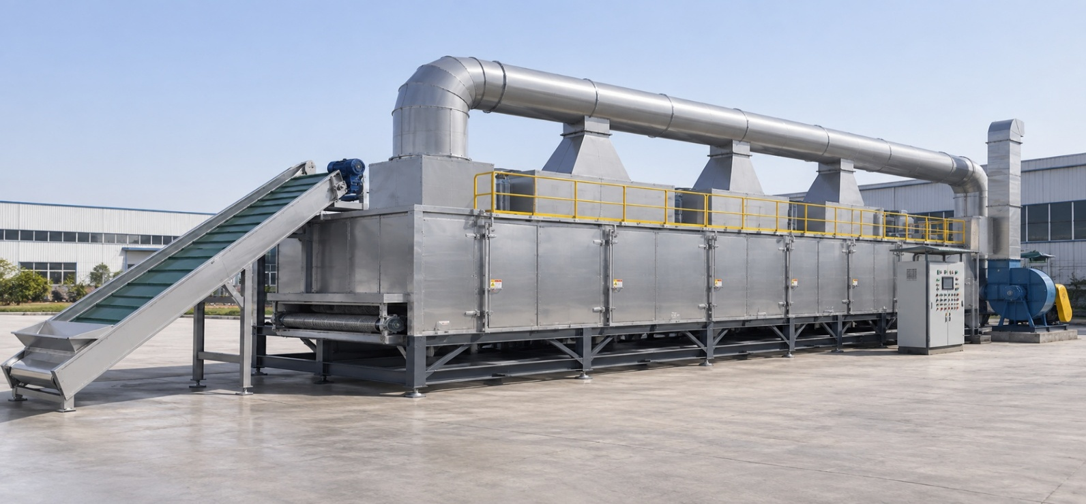

2. Belt Type Dryer for Waste Drying

Definition & Overview
Belt Type Dryer is a continuous conveyor-based system that dries materials on a perforated belt while heated air circulates through the material bed. Designed for precise control over drying parameters, it is ideal for materials requiring gentle handling or uniform drying. It employs efficient heat transfer and advanced exhaust management.

How It Works: Principle of Operation

1. Conveyorized Drying: Wet material is evenly spread on a slow-moving mesh belt, which travels through multiple temperature-controlled chambers (zones).

2. Zoned Heat Application: Each chamber has independent airflow and temperature settings. Heated air is forced through the material layer, ensuring uniform moisture removal.

3. Staged Drying: The process typically includes preheating, constant-rate drying, and falling-rate drying stages for optimal results.

4. Exhaust Management: Moisture-laden air is extracted, treated, and can be recirculated to save energy. Final emissions are cleaned to meet regulations.

Key Advantages & Features:

• Gentle and Uniform Drying: Ideal for heat-sensitive materials, preventing degradation or agglomeration.

• High Efficiency & Precise Control: Large material surface exposure and zonal control achieve exact moisture content targets.

• Low Emissions Profile: Enclosed design and efficient filtration result in low particulate and odor emissions.

• Modular & Scalable: Design allows for easy integration into existing lines or expansion of capacity.

Key Applications

• Food & Organic Waste: Drying for animal feed production, composting, or anaerobic digestion pre-treatment.

• Biomass Pellets & Briquettes: Pre-drying of raw materials for biofuel production.

• Industrial By-products: Drying of consistent, pre-sorted waste streams from manufacturing.

• Medium-Scale Processing Plants: Facilities with moderate throughput requirements and space considerations.

Comparative Analysis: Rotary Drum vs. Belt Type Dryers

Choosing the Right Waste Drying Machine for Your Project

Choose Rotary Drum Dryer if:

• You process high volumes of mixed, bulky, or non-uniform waste.

• Your primary goal is high-capacity throughput and robust operation.

• You have access to waste heat for cost-effective operation.

• The material can withstand tumbling and mechanical handling.

Choose Belt Type Dryer if:

• Your material is relatively uniform, fragile, or heat-sensitive.

• You require precise and uniform final moisture content.

• Space constraints are a key consideration.

• You prioritize gentle handling to preserve material structure.

The Role of Drying in Waste Management

Drying is a crucial pre-treatment step that transforms wet waste from a disposal burden into a valuable resource. By reducing moisture, drying waste significantly increases its calorific value for energy recovery, reduces weight and volume for transportation, stabilizes material for composting or storage, and prepares feedstock for advanced processes like anaerobic digestion or pelletization. Utilizing waste heat within an integrated facility further enhances the process's sustainability and economic viability.

Both Rotary Drum and Belt Type Dryers from MSWsorting offer reliable and efficient solutions for diverse waste drying challenges. The choice depends on your specific material characteristics, capacity requirements, and operational goals. By selecting the appropriate drying technology, processors can improve overall waste management efficiency, recover valuable resources, and contribute to a circular economy.

For tailored advice on waste drying solutions, consult with the engineering experts at MSWsorting to match the right technology to your feedstock and operational targets.
